Description
Egaliseur Graphique
Detented Metal-Shaft Fader
Precision Wein-bridge Filters for Accurate Response and Low Distortion
Constant « Q » Design with Low Ripple and Accurate Response Near the « Flat » Setting
Selectable 15dB or 6dB range
Switchable-Tunable Low-Cut Filter
10 Position, 2 Color LED Level Meter plus Peak LED Indicators
Balanced XLR, 1/4″, and Barrier Strip Inputs
Servo-Balanced XLR, 1/4″, and Barrier Strip Outputs

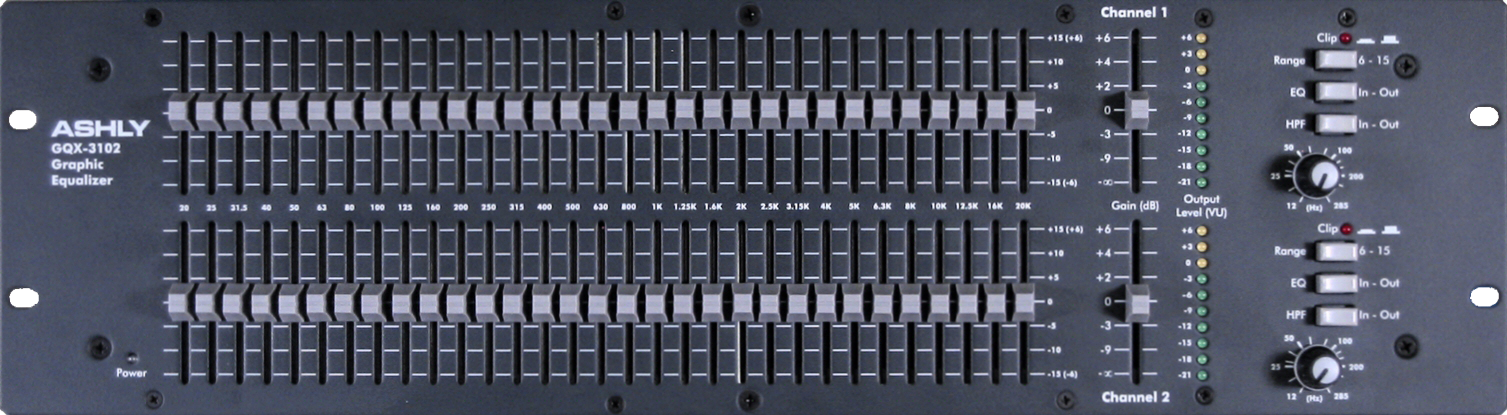

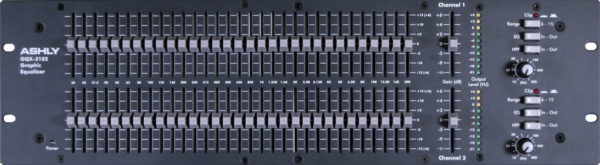

GQX-3102 Dual 31-Band Graphic Equalizer Specifications:
Input
Type: Active Balanced
Impedance: 20k ohm
Max. Level: +22dBu
Output
Type: Servo-Balanced
Min. Load Impedance: 600 ohm:
Max. Level: +22dBu
Frequency Response ±.25dB 20Hz-20kHz:
IM Distortion (SMPTE): <0.01% @ +20dBu
THD (20Hz-20kHz): <0.01% @ +20dBu
Equivalent Input Noise (20Hz-20kHz):- 92dBu
Filters
Type: Constant Q/Wein-Bridge
Number: 2 X 31
Bandwidth: 1/3 Octave ISO Center
Tolerance: ±3%
Range: ±6 or 15dB
Subsonic Filter: 18dB/Octave @ 8-200Hz
Power Requirements: 120VAC, 50-60Hz, 17W
Shipping Weight: 15 lbs
Dimensions: 19″L x 5.25″H x 6″D
I/O Connectors: XLR, 1/4″
